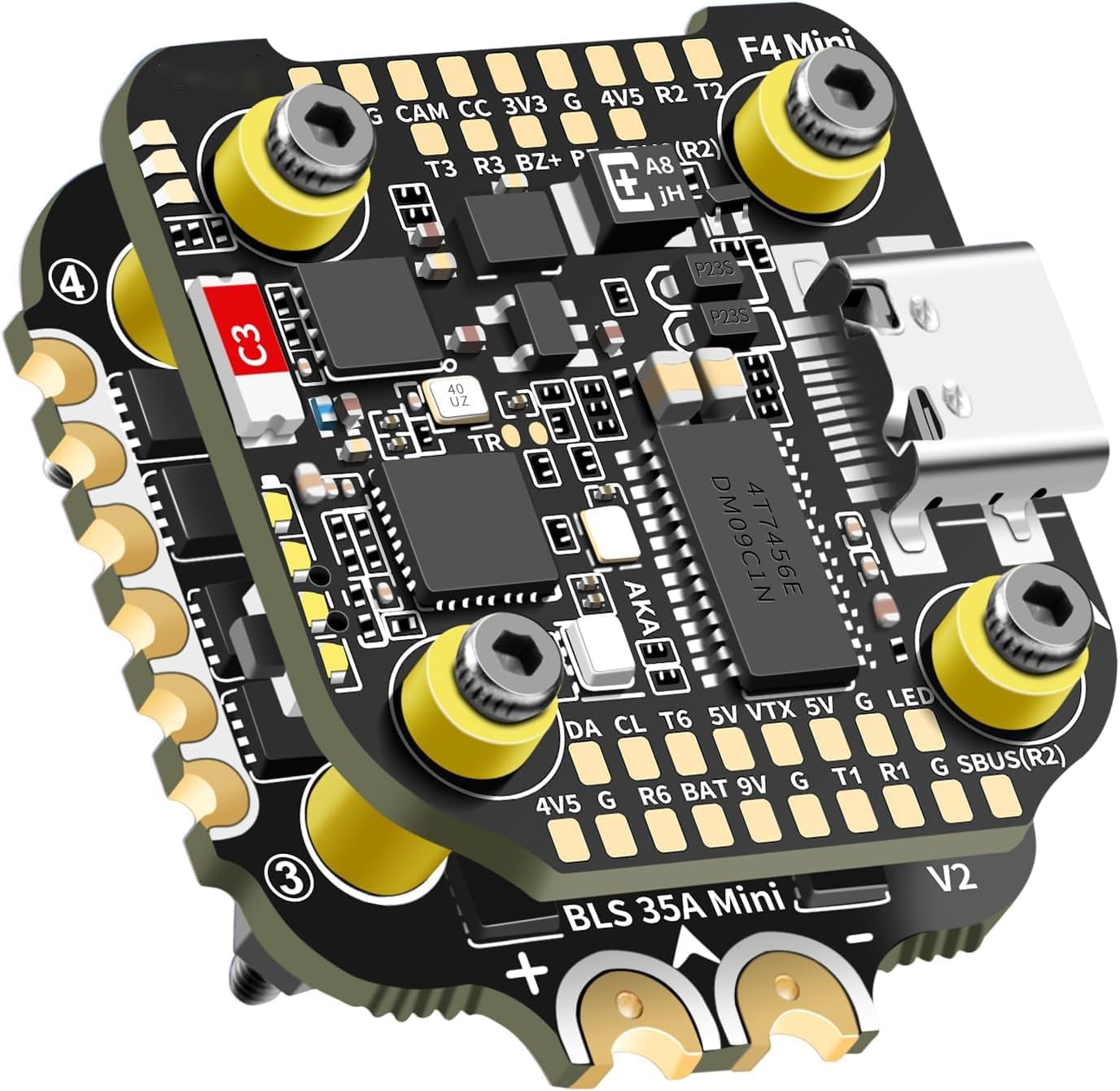

F405 Mini Flight Controller Stack, 20x20mm, APP Control, Bluetooth Built-in, 35A 4-in-1 BLHeliS ESC Board, Compatible with DJI Air Unit FPV Drone Airplane

F405 Mini Flight Controller + 35 A 4-in-1 BLHeliS ESC Stack (20×20)

Name: F405 Mini Flight Controller + 35 A 4-in-1 BLHeliS ESC Stack (20×20)
SKU: f405-mini-fc-35a-4in1-blhelis-esc-stack-20x20
Price: 145.19 USD
Availability: InStock

$145.19

ColorBlack

Qty

ADVANCED CHIP TECHNOLOGY FOR OPTIMAL PERFORMANCE: The Speedy F405 MINI 35A flight controller boasts advanced chip technology, featuring a high-performance processor that delivers real-time response to flight commands. This ensures unparalleled flight stability and responsiveness, crucial for demanding flight configurations.
ENHANCED USER EXPERIENCE WITH WIRELESS CONTROL: Equipped with a built-in Bluetooth module, users can adjust flight settings wirelessly via the Speedy APP. This convenient feature maximizes drone performance while providing intuitive control, enhancing the flying experience.
EFFICIENT MOTOR DRIVE FOR VERSATILE FLIGHT TASKS: The 35A all-in-one BLHeliS ESC board ensures efficient motor drive, making it suitable for a wide range of flight tasks, from compact 2-4 inch drones to ultra-light 5-inch models. This versatility allows users to tackle various aerial challenges with ease.
COMPREHENSIVE FLIGHT MONITORING AND CONTROL FEATURES: The flight controller board is equipped with intuitive features such as 4-level battery level indicator lights and a built-in barometer. These features enable users to monitor battery levels accurately and maintain stable flight by precisely controlling altitude, ultimately enhancing safety and control during flight.
FLEXIBLE COMPATIBILITY AND INSTALLATION OPTIONS: With dual BEC outputs providing power options of 5V 2A and 9V 3A, users have the flexibility to connect a wide range of FPV equipment, including analog image transmissions and DJI Air Unit setups. The M2/M3 dual compatibility design also ensures easy installation on various frame types, ensuring a seamless and stable fit without compromise.

Specifications

Processor	STM32F405
ESC	35 A 4-in-1, BLHeli_S
Mounting	20 × 20 mm, M2 / M3 compatible
Wireless	Bluetooth, for tuning from the app
BEC	Dual: 5 V 2 A and 9 V 3 A
Sensors	Barometer, 4-level battery indicator
Connectivity	4 UART, OSD, DJI air unit ready
Suits	2 to 4 inch builds, and ultra-light 5 inch
Firmware	Betaflight
Manufacturer	Xiangtat
